Headlamp Switch - Installation

INSTALLATION

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

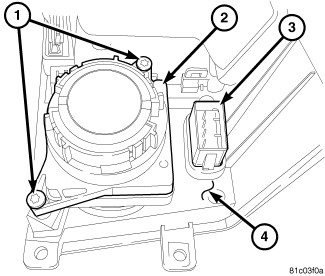

1. Position the headlamp switch (2) to the receptacle on the back of the left outboard air outlet bezel (4).
2. Install and tighten the two screws that secure the switch housing to the bezel. Tighten the screws securely.
3. Reinstall the air outlet bezel onto the instrument panel. .
4. Reconnect the battery negative cable.
