Warm Water Parking Heater Switch (With Heater Radio Signal Receiver) (CLS) 10 Way

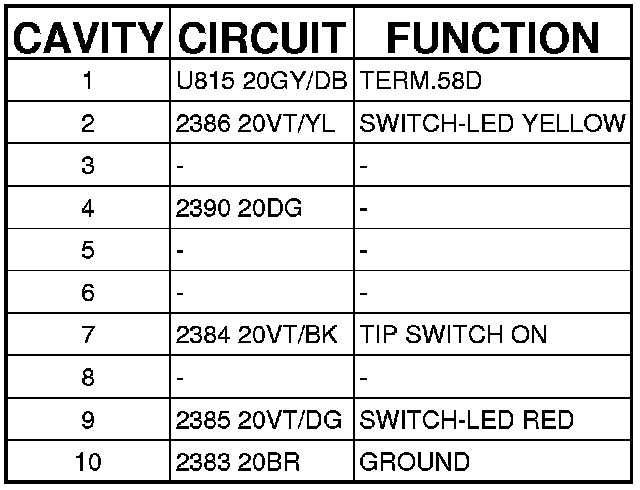

Connector (WITH HEATER-RADIO SIGNAL RECEIVER) - (CLS) 10 WAY

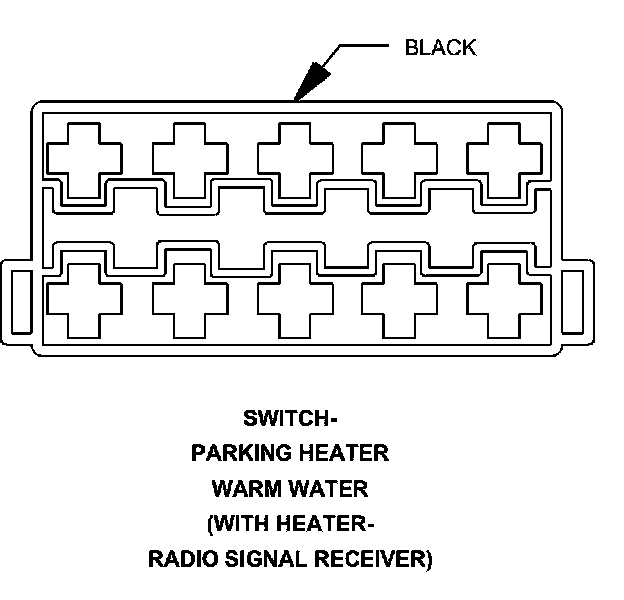

SWITCH-PARKING HEATER WARM WATER (WITH HEATER-RADIO SIGNAL RECEIVER) - (CLS) 10 WAY
