Parking Heater Switch (Without Heater Radio Signal Receiver) (CLS) 10 Way

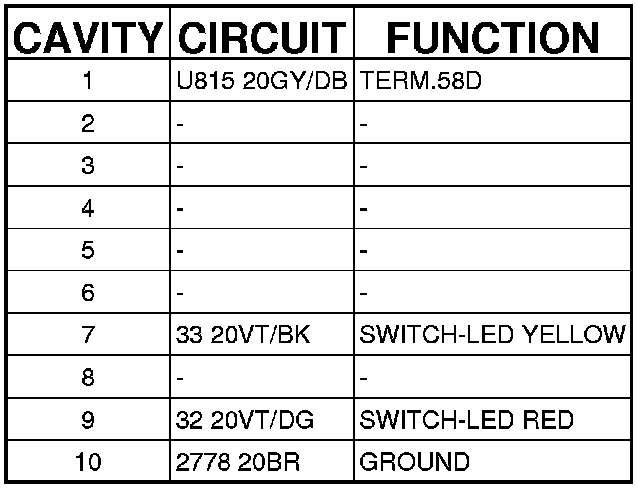

Connector (WITHOUT HEATER-RADIO SIGNAL RECEIVER) - (CLS) 10 WAY

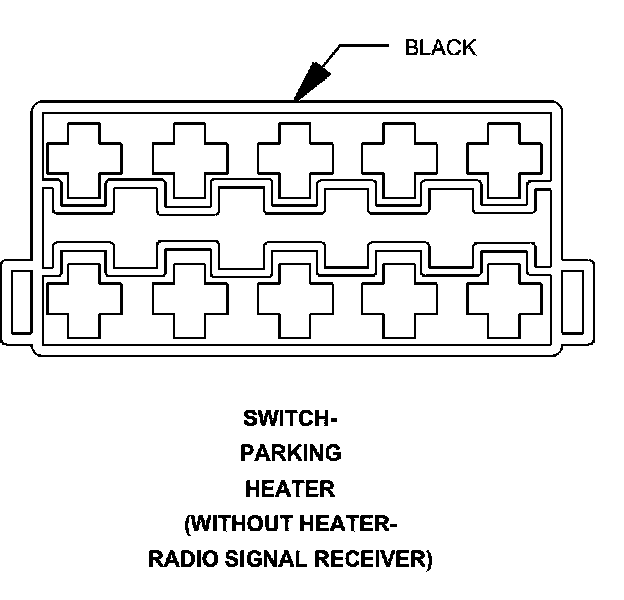

SWITCH-PARKING HEATER (WITHOUT HEATER-RADIO SIGNAL RECEIVER) - (CLS) 10 WAY
