Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Cruise Control Switch >> Diagrams

Cruise Control Switch: Diagrams

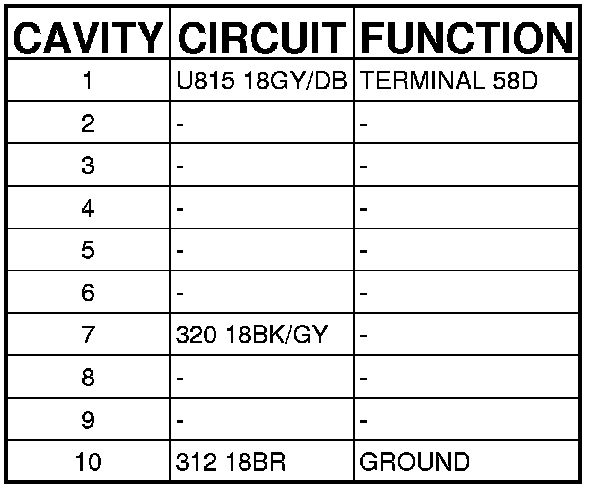

Connector - (CLS) 10 WAY

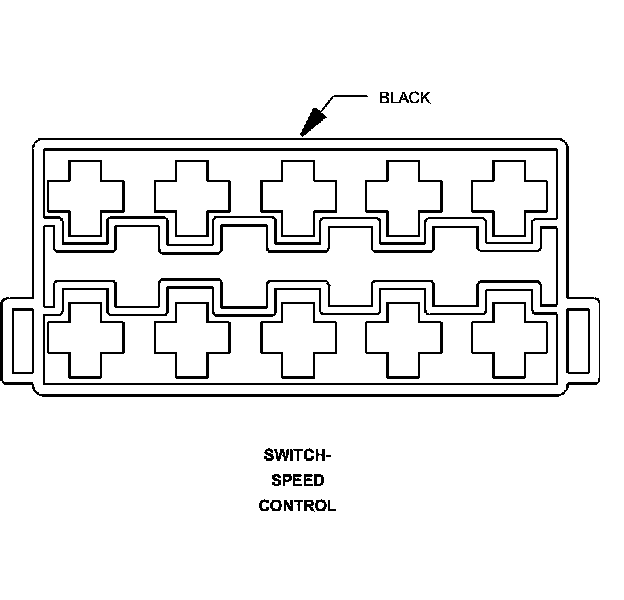

SWITCH-SPEED CONTROL - (CLS) 10 WAY
