Installation

3.0L DIESEL

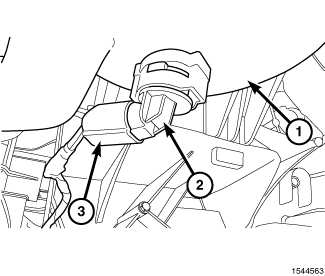

1. Position coolant level sensor (2) under the coolant recovery container (1), turn counterclockwise 90 degrees to seat cooler level sensor (2).
2. Connect coolant level sensor electrical connector (3).
3. Refill cooling system to proper level Service and Repair
4. Inspect for leaks.
