Freightliner Truck
>>
2009
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Brakes and Traction Control
>>
Wheel Speed Sensor
>>
Diagrams
>>

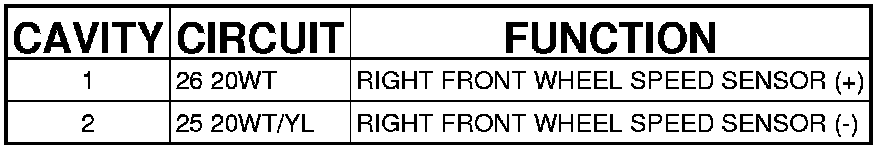

Right Front Wheel Speed Sensor (HLS) 2 Way
Right Front Wheel Speed Sensor (HLS) 2 Way

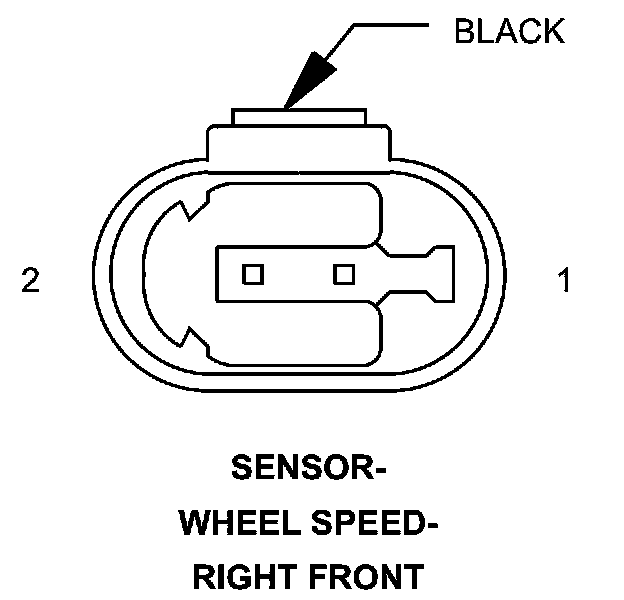

Connector - (HLS) 2 WAY
SENSOR-WHEEL SPEED-RIGHT FRONT - (HLS) 2 WAY
