Park Assist Sensor 8 (Rear Park Assist) (LU PTS Hi) 3 Way

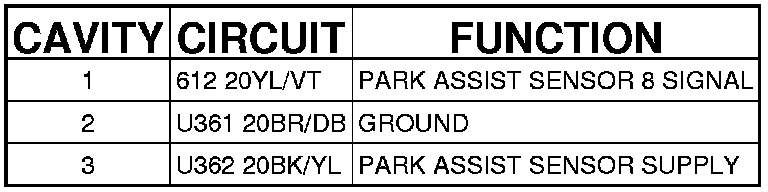

Connector (REAR PARK ASSIST) - (LU PTS HI) 3 WAY

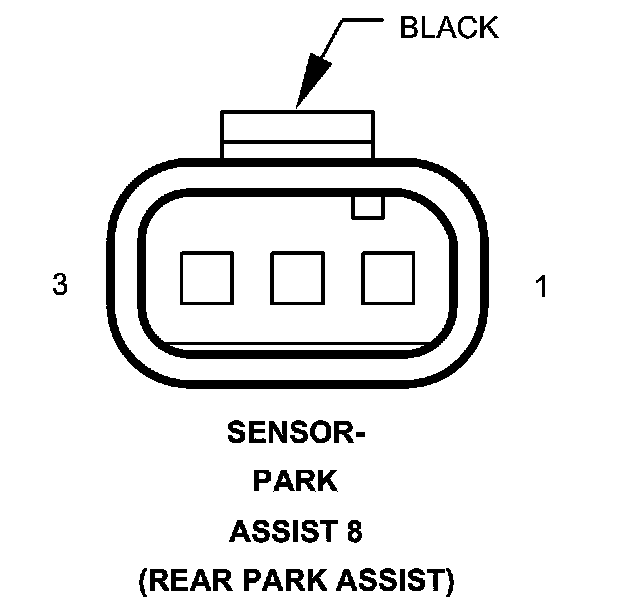

SENSOR-PARK ASSIST 8 (REAR PARK ASSIST) - (LU PTS HI) 3 WAY
