Park Assist Sensor 4 (Front Park Assist) (LU PTS VO) 3 Way

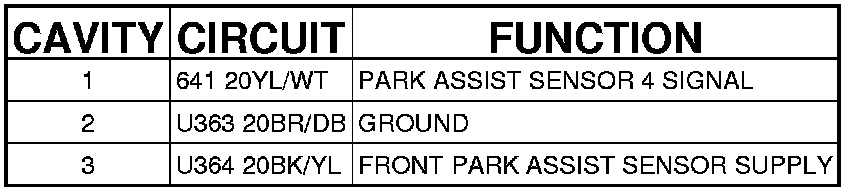

Connector (FRONT PARK ASSIST) - (LU PTS VO) 3 WAY

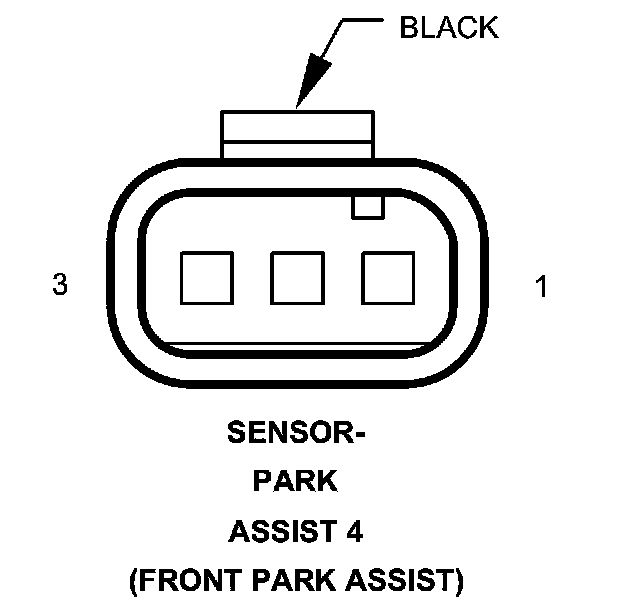

SENSOR-PARK ASSIST 4 (FRONT PARK ASSIST) - (LU PTS VO) 3 WAY
