Switch Bank Module C1 (CLS) 4 Way
Switch Bank Module C1 (CLS) 4 Way

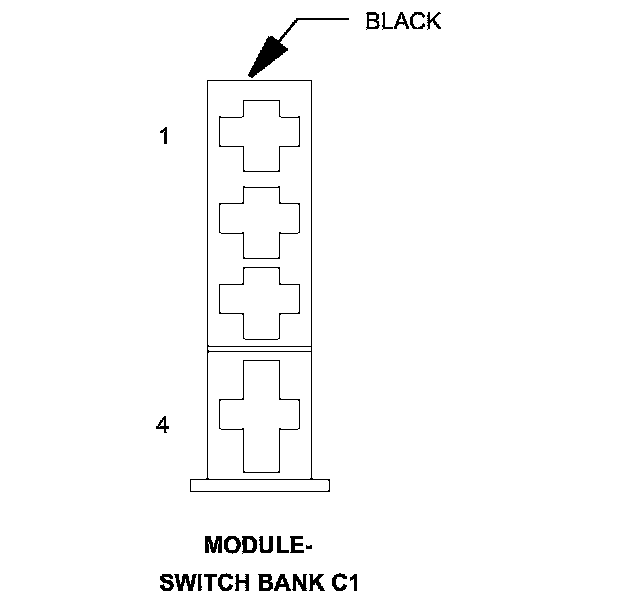

Connector C1 - (CLS) 4 WAY

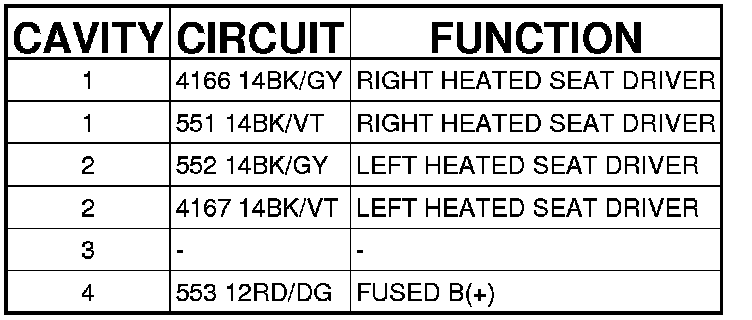

MODULE-SWITCH BANK - (CLS) 4 WAY
