Right Side Impact Sensor 2 (BFT) 3 Way
Right Side Impact Sensor 2 (BFT) 3 Way

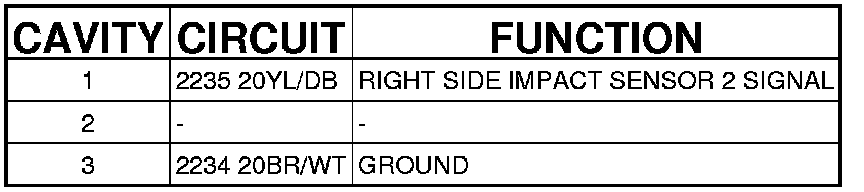

Connector - (BFT) 3 WAY

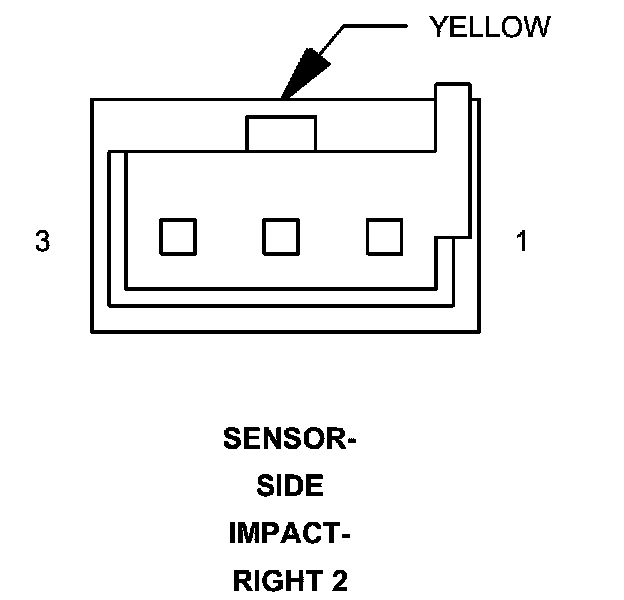

SENSOR-SIDE IMPACT-RIGHT 2 - (BFT) 3 WAY
