Seat Belt Turning Loop Adjuster - Installation

INSTALLATION

WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar (R) Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

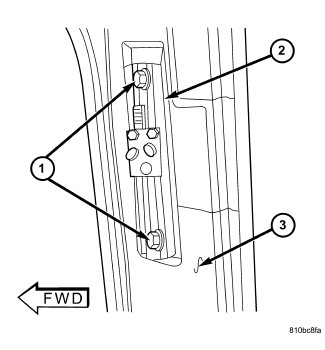

1. Position the front outboard seat belt turning loop height adjuster (2) onto the upper inner B-pillar (3).
2. Install and tighten the screw (1) that secures the top of the adjuster to the inner B-pillar. Tighten the screw to 37 Nm (27 ft. lbs.).
3. Install and tighten the screw that secures the bottom of the adjuster to the inner B-pillar. Tighten the screw to 25 Nm (18 ft. lbs.).
4. Position the front outboard seat belt turning loop onto the height adjuster on the upper inner B-pillar.
5. Install and tighten the screw that secures the turning loop to the height adjuster. Tighten the screw to 37 Nm (27 ft. lbs.).
6. Reinstall the trim onto the inside of the B-pillar. .
7. Reconnect the battery negative cable.
