FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Freightliner Truck
>>
2009
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Air Bag
>>
Diagrams
>>
Right Side Curtain Airbag C1 (HLS) 2 Way
Right Side Curtain Airbag C1 (HLS) 2 Way

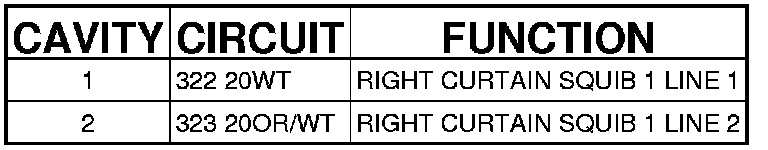

Connector C1 - (HLS) 2 WAY

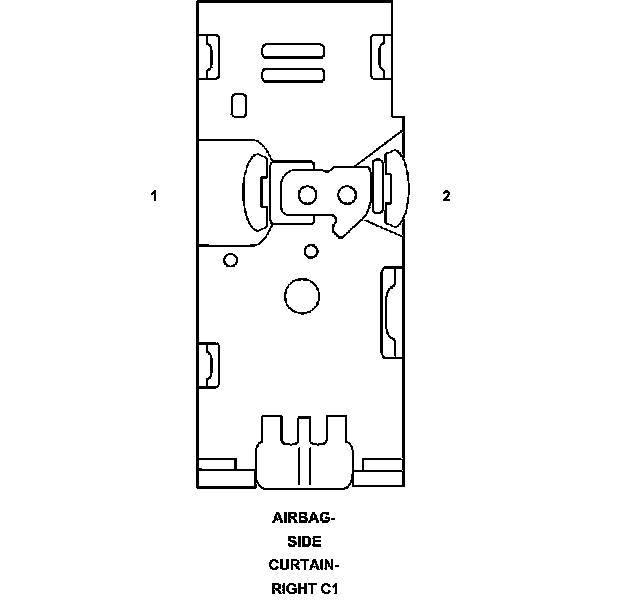

AIRBAG-SIDE CURTAIN-RIGHT - (HLS) 2 WAY
