Driver Airbag Squib (Steering Control Module) 2 Way
Driver Airbag Squib (Steering Control Module) 2 Way

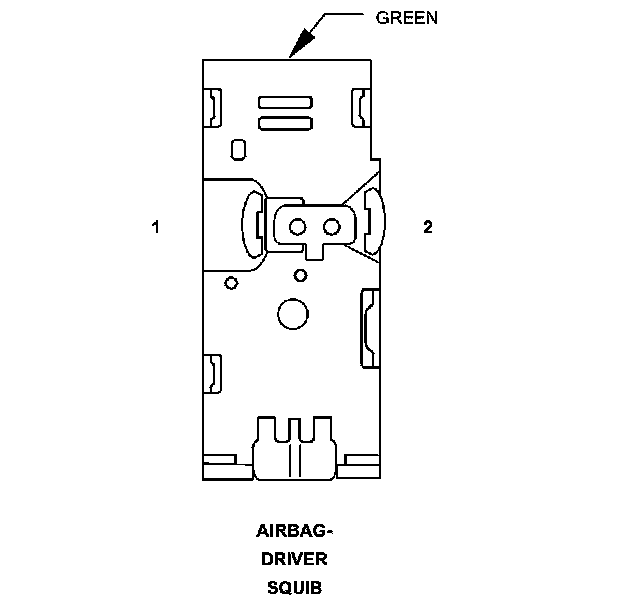

Connector - (STEERING CONTROL MODULE) 2 WAY

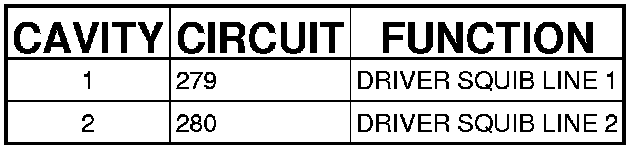

AIRBAG-DRIVER SQUIB - (STEERING CONTROL MODULE) 2 WAY
