Rear Tire Pressure Monitor Transponder (HLS) 4 Way
Rear Tire Pressure Monitor Transponder (HLS) 4 Way

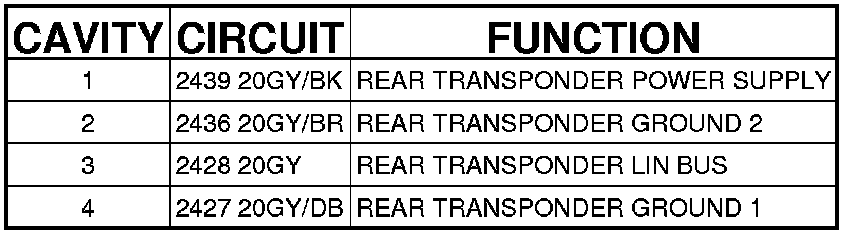

Connector - (HLS) 4 WAY

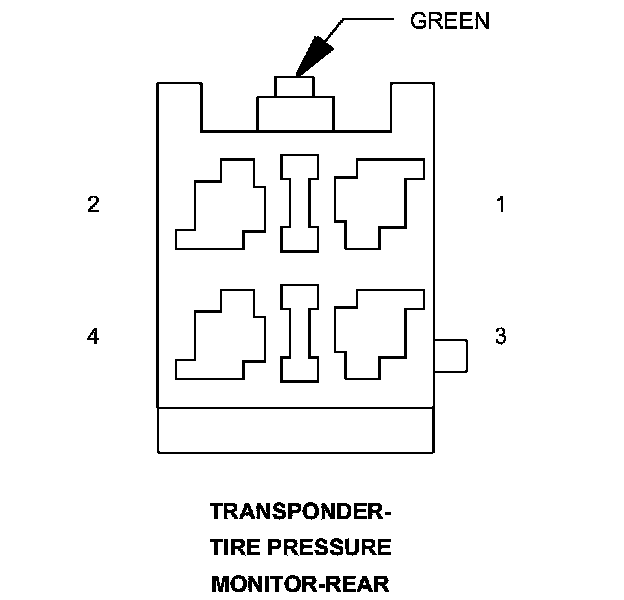

TRANSPONDER-TIRE PRESSURE MONITOR-REAR - (HLS) 4 WAY
