Tire Pressure Monitoring (TPM) Module - Description

DESCRIPTION

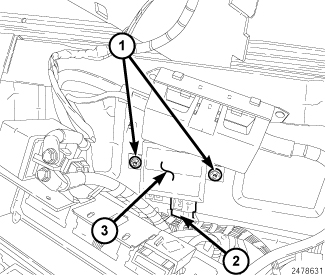

NOTE: The view is with the electrical connector bracket and the battery cable bracket retainers removed and the brackets positioned aside.

The TPM Module (3) is a stand alone receiver that is used to perform all TPM functionality on this vehicle. The TPM is located under the drivers seat behind the module/relay center with a bracket. The TPM uses information transmitted from each of the sensors as well as the difference is the strength of the signal received to determine the location of each of the sensors. The TPM then transmits the required information directly to the CCN in order to update the lamp, chime and display as required.
