Voice Activation Module: Diagrams

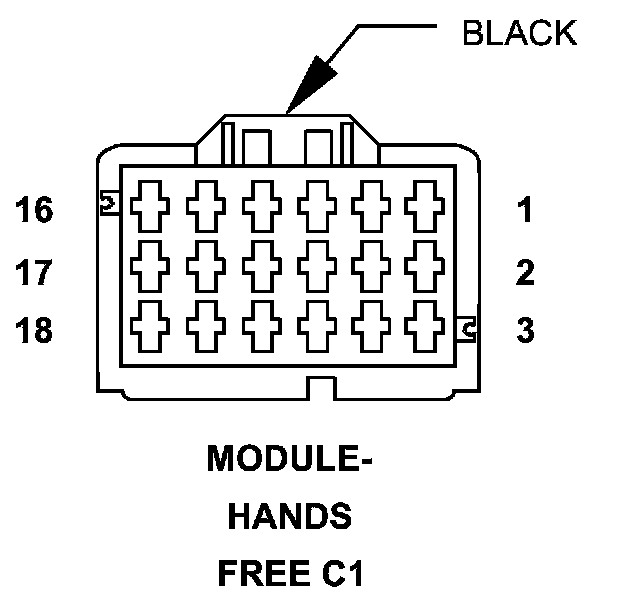

Connector C1 - (LU HANDY AUFNAHME) 18 WAY

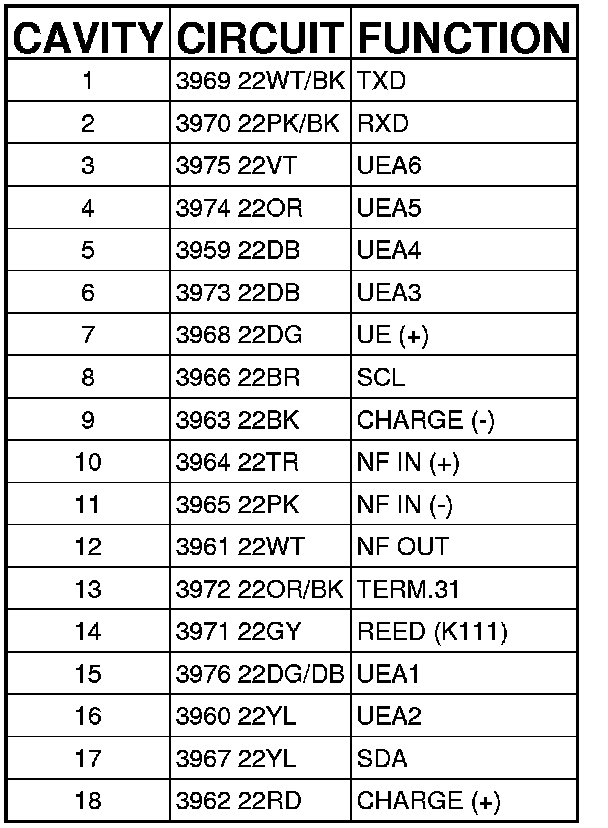

MODULE-HANDS FREE - (LU HANDY AUFNAHME) 18 WAY
