FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Freightliner Truck
>>
2009
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Accessories and Optional Equipment
>>
Communications Control Module
>>
Diagrams
>>
Universal Cell phone Interface (MOST) (CLS) 32 Way
Universal Cell phone Interface (MOST) (CLS) 32 Way

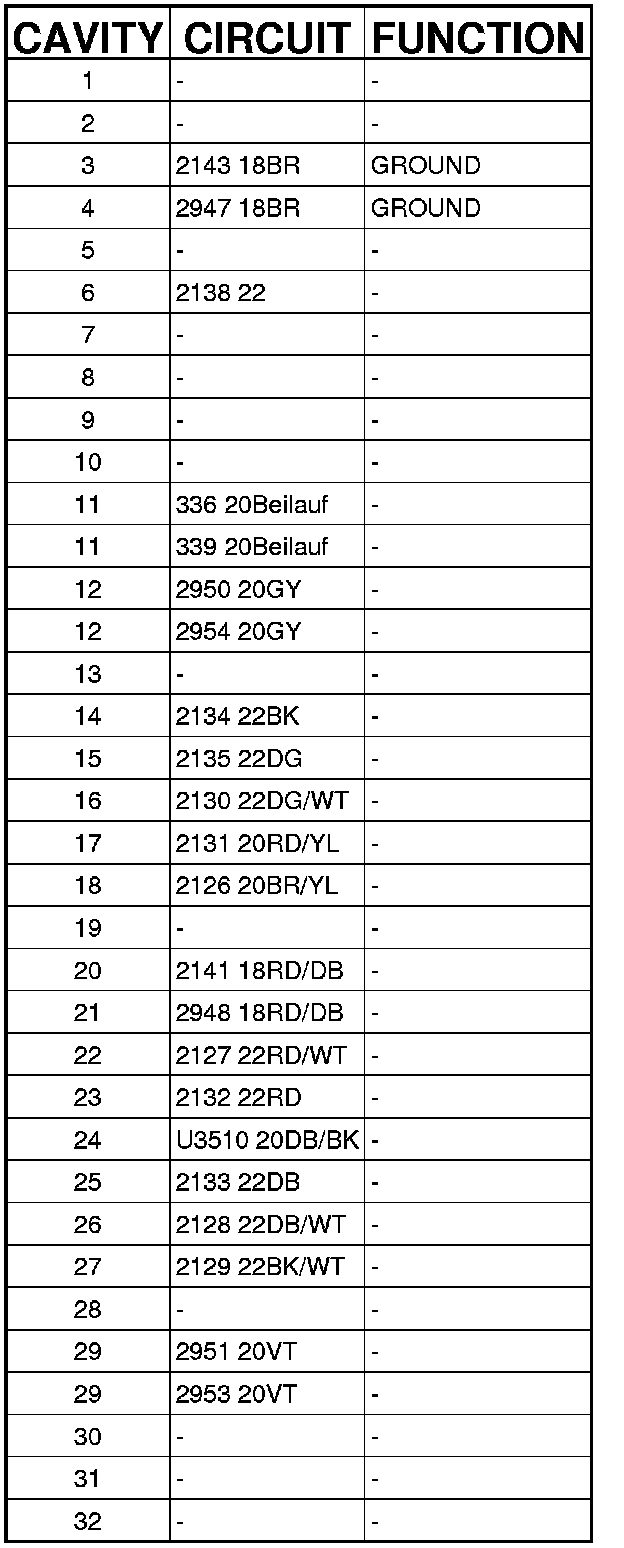

Connector (MOST) - (CLS) 32 WAY

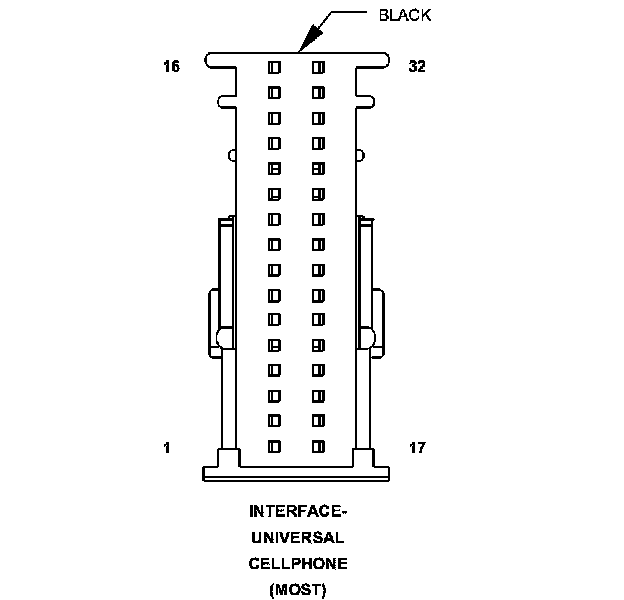

INTERFACE-UNIVERSAL CELLPHONE (MOST) - (CLS) 32 WAY
