EGR Valve Position Sensor: Diagrams

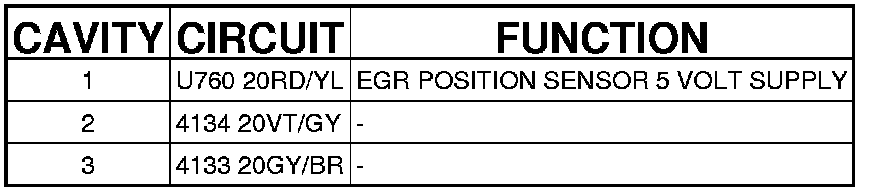

Connector (DIESEL) - (OM642) 3 WAY

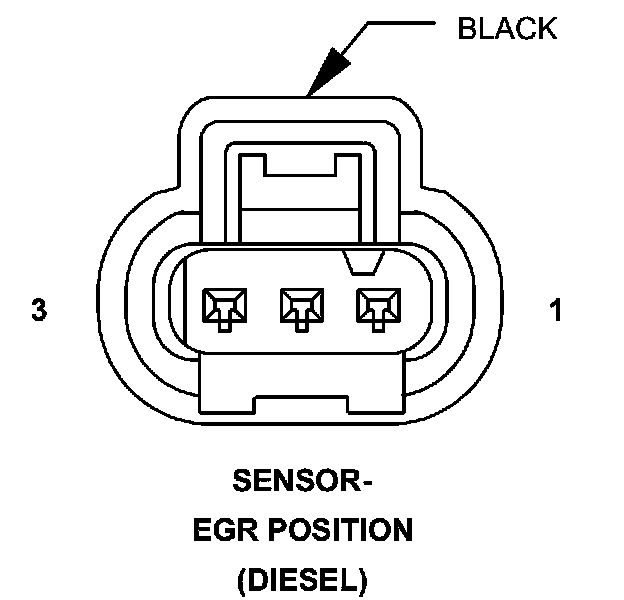

SENSOR-EGR POSITION (DIESEL) - (OM642) 3 WAY
