Variable Induction Control Solenoid: Diagrams

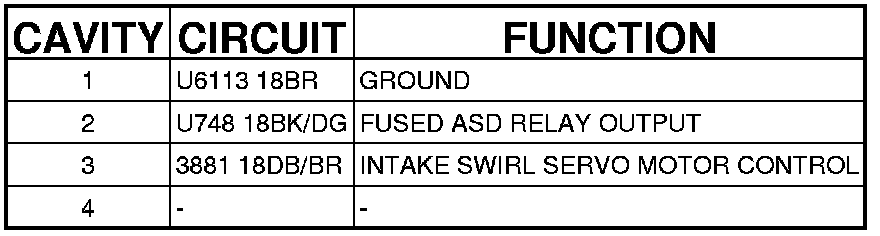

Connector (DIESEL) - (OM642) 4 WAY

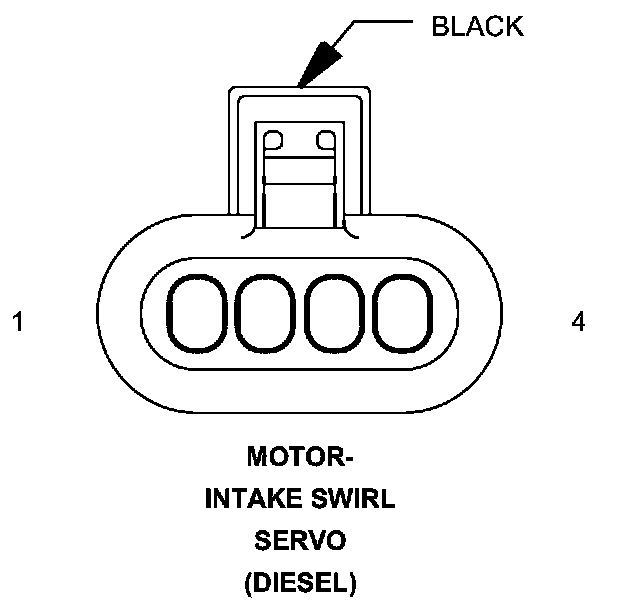

MOTOR-INTAKE SWIRL SERVO (DIESEL) - (OM642) 4 WAY
