Boost Pressure Positioner - Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the air cleaner housing.
3. Remove the turbo heat shield.

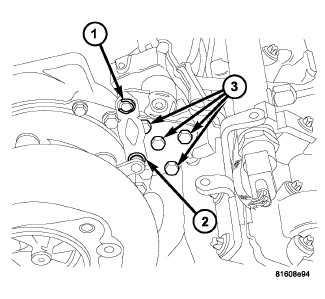

4. Remove circlip from actuator rod at turbocharger end (2).
5. Remove mounting bolts and remove boost pressure positioner and actuator rod (3).
6. Remove circlip and actuator rod from boost pressure positioner (1).
