Draining Water From Fuel Filter

DRAINING WATER FROM FUEL FILTER

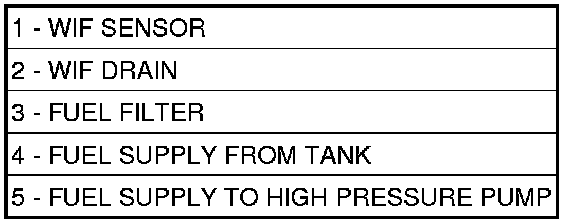

Connect a hose to the Water in Fuel (WIF) drain (2) and place it in a clearly marked and suitable container. Open the WIF drain by turning counterclockwise. Turn the ignition key on for 20 seconds (Refer to low pressure fuel pump operation). Repeat the procedure until all water is removed, close the drain and remove the hose.
