Fuel Injector 3 (Diesel) (OM642) 2 Way

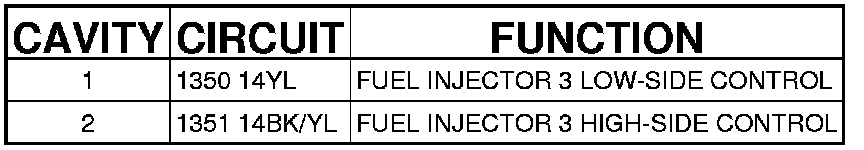

Connector (DIESEL) - (OM642) 2 WAY




INJECTOR-FUEL 3 (DIESEL) - (OM642) 2 WAY
