Fuel Injector 2 (Diesel) (OM642 ) 2 Way

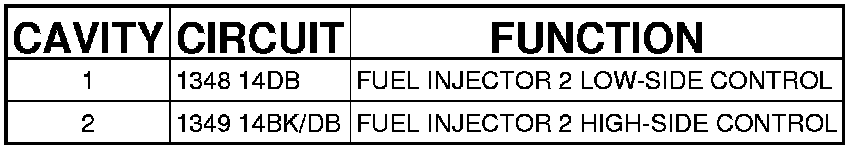

Connector (DIESEL) - (OM642 ) 2 WAY

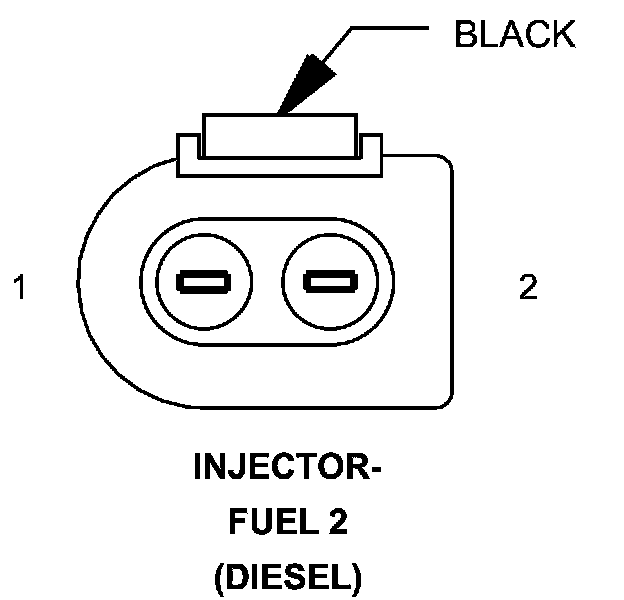

INJECTOR-FUEL 2 (DIESEL) - (OM642 ) 2 WAY
