PCV Heater: Diagrams

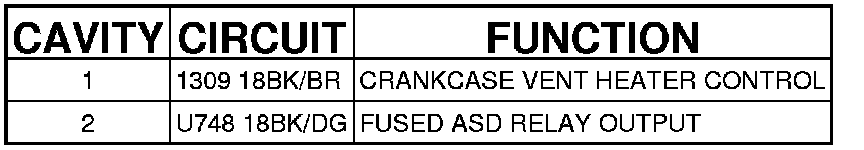

Connector (DIESEL) - (OM642) 2 WAY

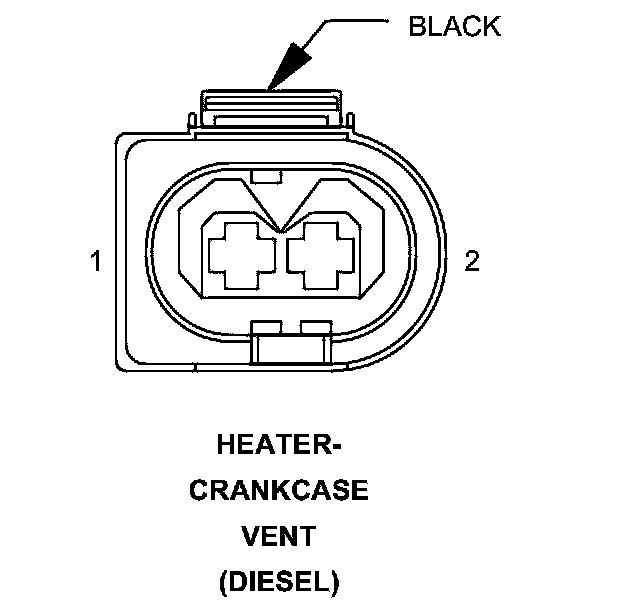

HEATER-CRANKCASE VENT (DIESEL) - (OM642) 2 WAY
