Data Link Connector: Diagrams

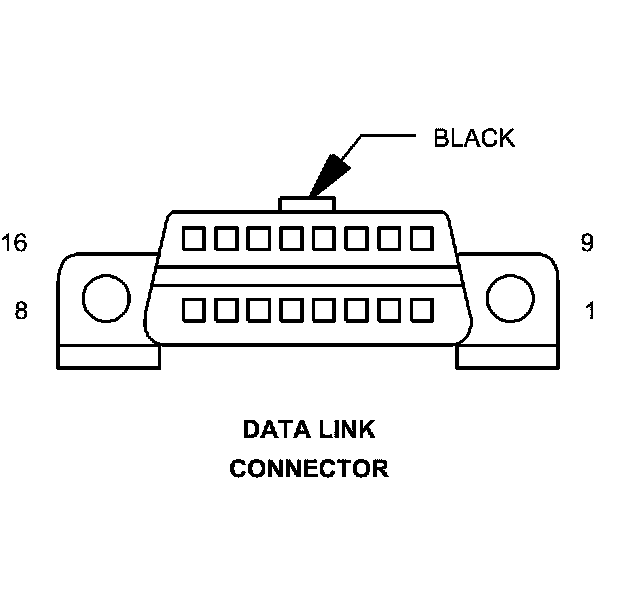

Connector - (INSTRUMENT PANEL) 16 WAY

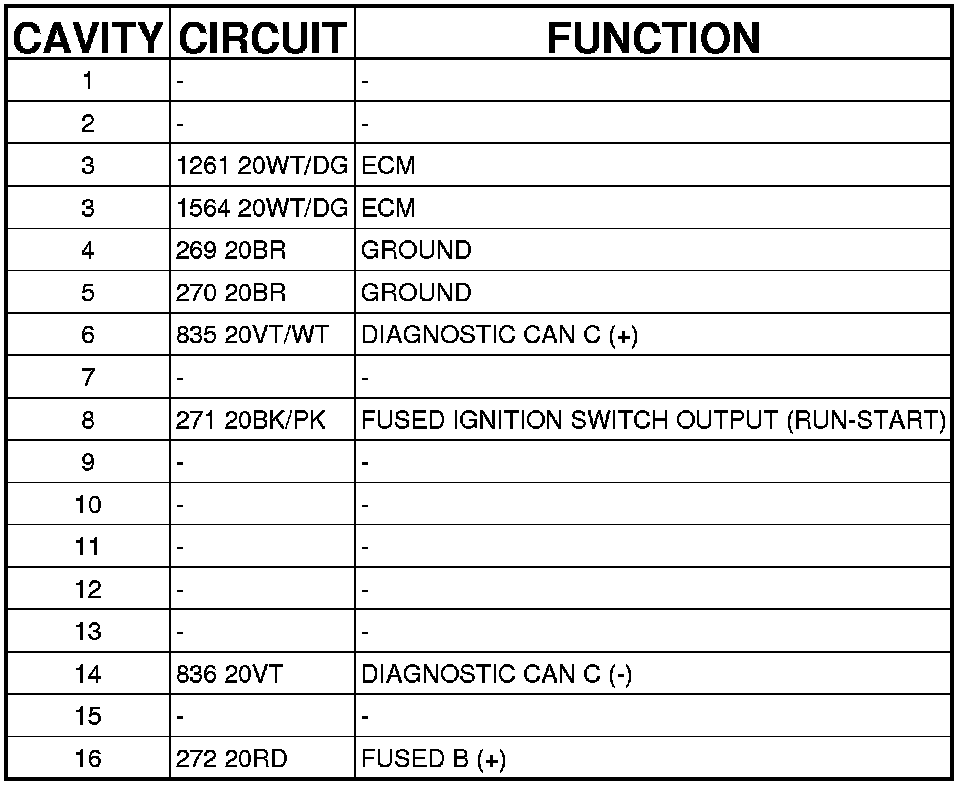

DATA LINK CONNECTOR - (INSTRUMENT PANEL) 16 WAY
