Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Diagrams >> Fuse/Relay Block C1 (CLS) 15 Way

Fuse/Relay Block C1 (CLS) 15 Way

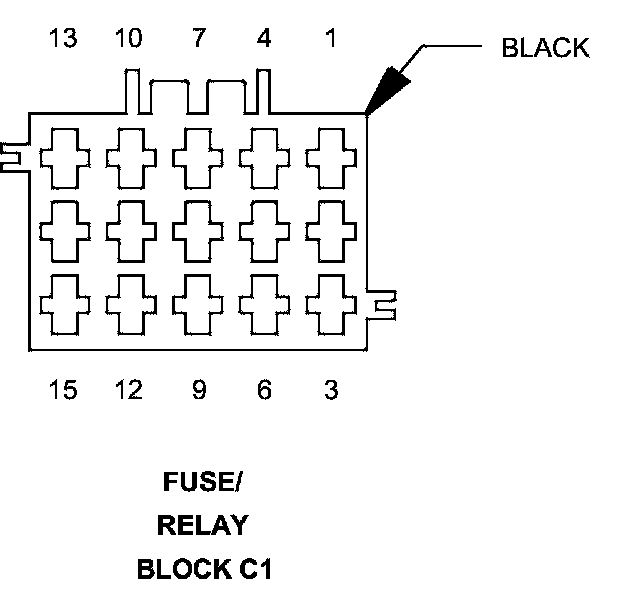

Connector C1 - (CLS) 15 WAY

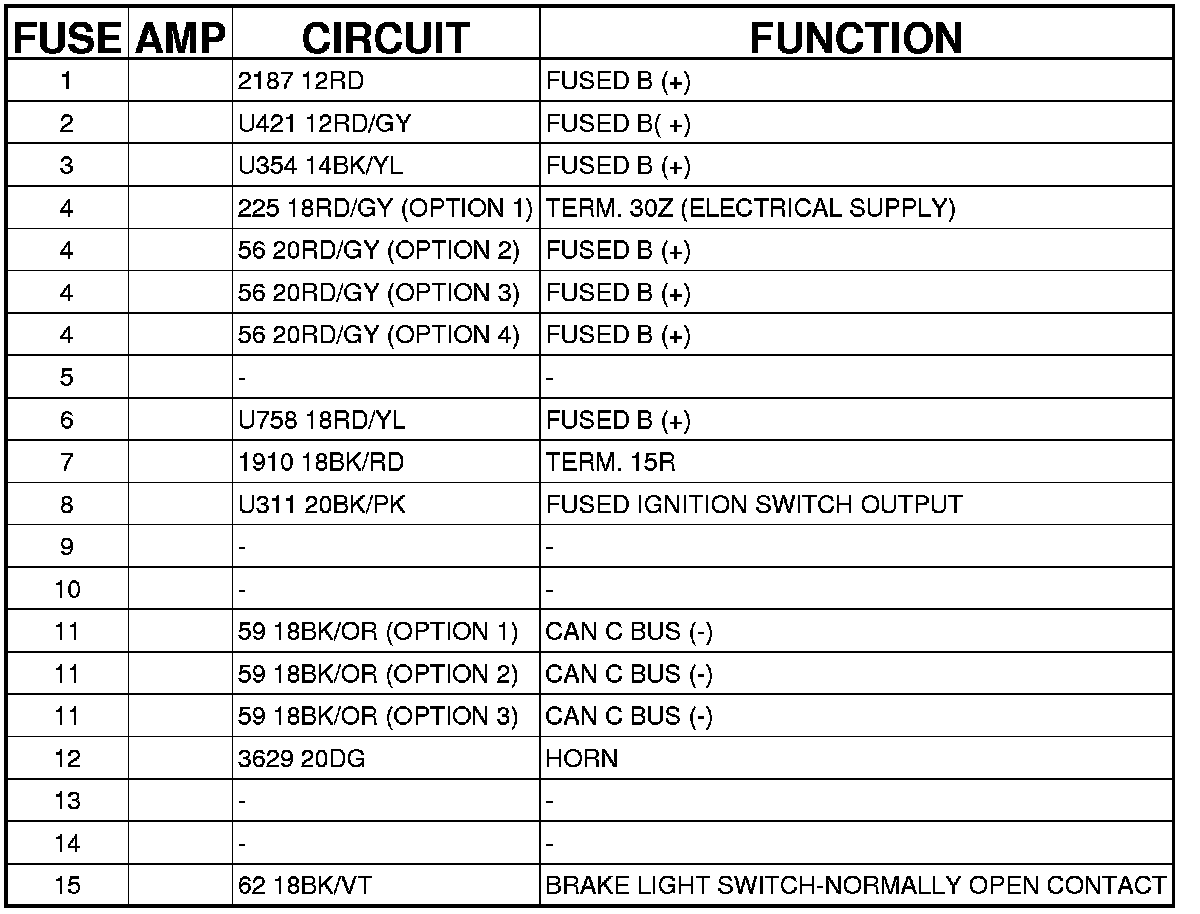

FUSE/RELAY BLOCK - (CLS) 15 WAY
