Cooling Fan Serpentine Belt With Rear A/C

3.0L COOLING FAN SERPENTINE BELT WITH REAR A/C










CAUTION: Do not attempt to check belt tension with a belt tension gauge on vehicles equipped with an automatic belt tensioner.

1. Remove the radiator fan and shroud assembly.Removal

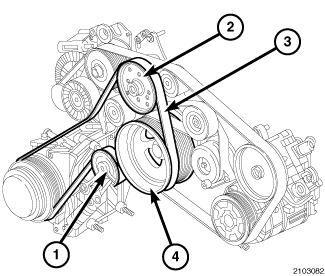

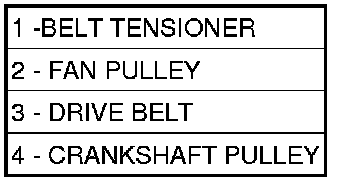

2. Using a suitable tool, rotate tensioner assembly (1) counterclockwise until tension has been relieved from the fan drive belt (3).

CAUTION: Do not let the tensioner arm snap back to the free arm position, severe damage may occur to the tensioner.

3. Remove the fan drive belt (3).
