Left Tail Lamp (Chassis Cab) (HLS) 7 Way

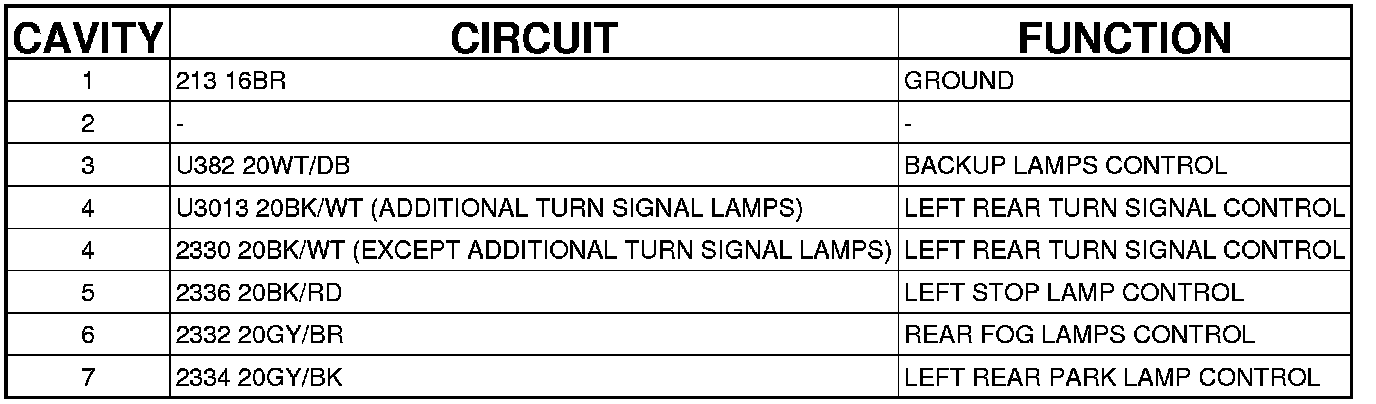

Connector (CHASSIS CAB) - (HLS) 7 WAY

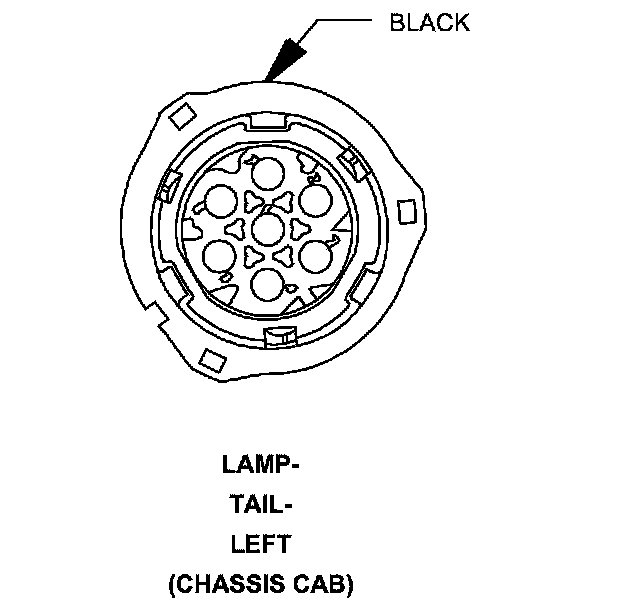

LAMP-TAIL-LEFT (CHASSIS CAB) - (HLS) 7 WAY
