Center Front Identification Lamp (LS) 2 Way

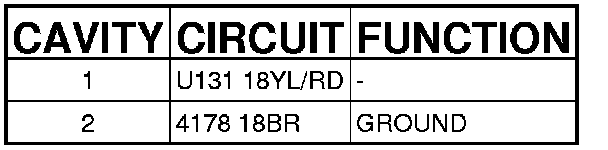

Connector - (LS) 2 WAY

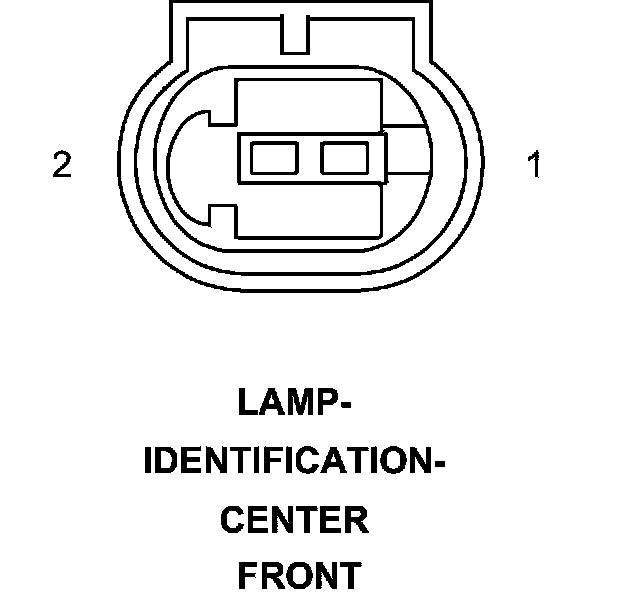

LAMP-IDENTIFICATION-CENTER FRONT - (LS) 2 WAY
