Home
>>
Freightliner Truck
>>
2009
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
License Plate Lamp
>>
Diagrams
>>

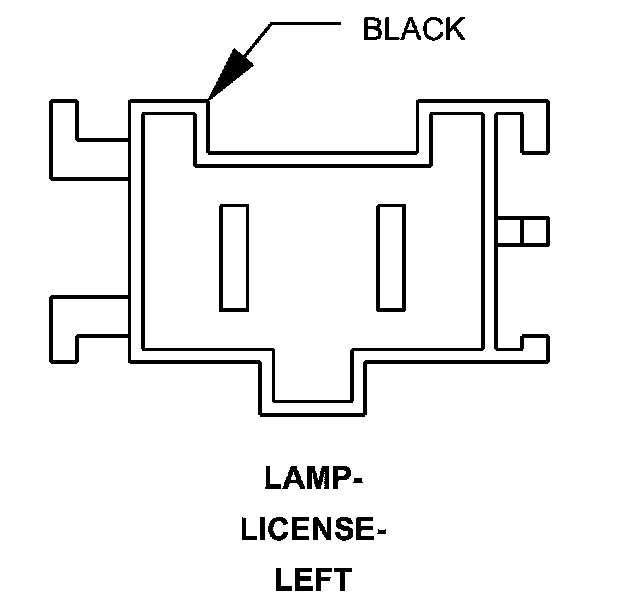

Left License Plate Lamp (HDT Left) 2 Way
Left License Plate Lamp (HDT Left) 2 Way

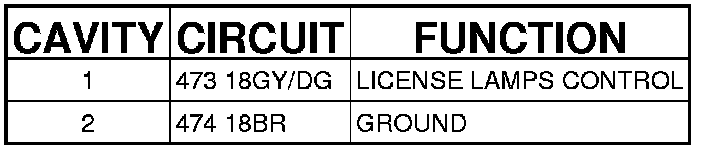

Connector - (HDT_LI) 2 WAY
LAMP-LICENSE-LEFT - (HDT_LI) 2 WAY
