Headlamp Alignment Actuator - Installation

INSTALLATION

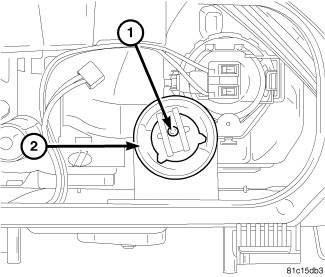

1. Align the headlamp leveling motor and pushrod with the keyed opening in the mounting bracket (2) integral to the back of the front lamp unit housing.
2. Insert the motor pushrod through the mounting bracket far enough to engage the ball formation on the end of the pushrod with the guide (1) on the back of the lamp reflector.
3. Insert the motor into the keyed opening of the mounting bracket until it is fully seated, then rotate the motor housing clockwise about 30 degrees to lock it into place.





4. Reconnect the front lamp unit wire harness connector to the connector receptacle for the headlamp leveling motor (3).

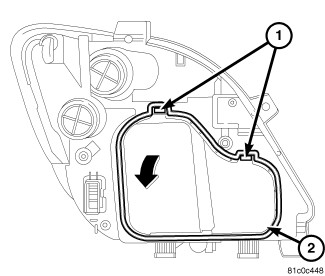

5. Engage the two tabs on the bottom of the front lamp unit rear cover (2) with the two slotted brackets integral to the back of the lamp housing.
6. Swing the rear cover upward into place, then pull upward on the two latches (1) until they snap into place with an audible click.
7. Reinstall the front lamp unit onto the vehicle.
8. Reconnect the battery negative cable.
