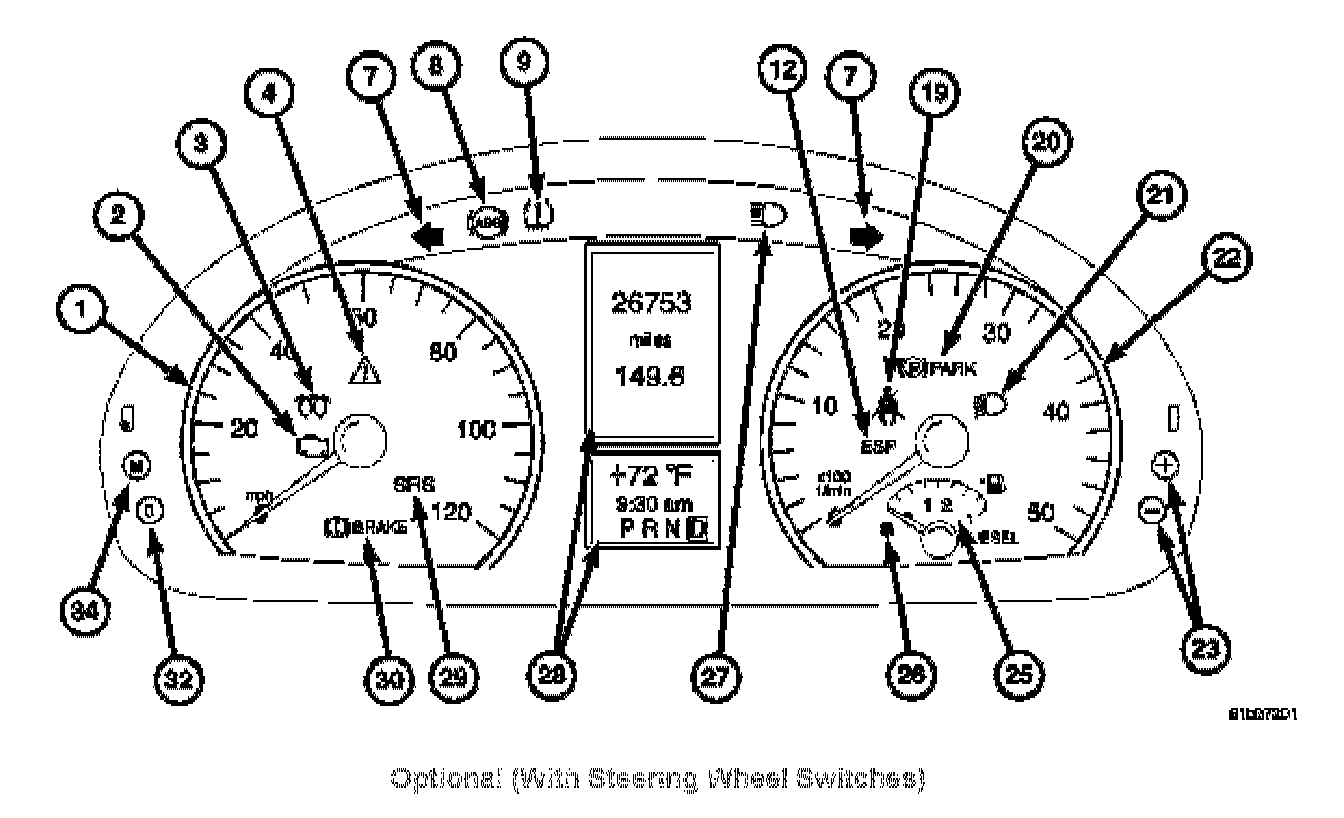

Instrument Cluster / Carrier: Locations

The EMIC includes the following analog gauges:

Fuel Gauge (25) - with optional EMIC (with steering wheel switches) only. An electronic segmented bar graph fuel gauge in the multi-function display (28) is used with the standard EMIC (without steering wheel switches).
Speedometer (1) Tachometer (22)


The EMIC includes one of the following multi-function display units:

Liquid Crystal Display (28) - single Liquid Crystal Display (LCD) with standard EMIC (without steering wheel switches).
Organic Light Emitting Diode Display (28) - dual Organic Light Emitting Diode (OLED) displays with optional EMIC (with steering wheel buttons).

The EMIC includes the following multi-function display push button switches:

Plus (+) and Minus (-) Buttons (23) Zero (Reset) Button (32) Menu (M) Button (33) - with standard EMIC (without steering wheel switches) only. A steering wheel menu button is used with the optional EMIC (with steering wheel switches).
Engine Oil Level Buffon (34) - with optional EMIC (with steering wheel switches) only. Engine oil level is displayed by selecting an item on a menu found using the M (Menu) button with the standard EMIC (without steering wheel switches).


The EMIC includes provisions for the following indicators:

Airbag (SRS) Indicator (29)
Air Filter Indicator (18) - with diesel engine only and with standard EMIC (without steering wheel switches) only. An icon and textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
Ajar Indicators (15) - with standard EMIC (without steering wheel switches) only. An icon and textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
Antilock Brake System (ABS) Indicator (8) Brake Indicator (30)
Brake Wear Indicator (16) - with standard EMIC (without steering wheel switches) only. An icon and textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
Charging Indicator (14) - with standard EMIC (without steering wheel switches) only. An icon and textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
Constant Engine Speed (ADR) Indicator (24) - with standard EMIC (without steering wheel switches) only. A textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
Coolant Low Indicator (6) - with standard EMIC (without steering wheel switches) only. An icon and textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
Electronic Stability Program (ES P) Indicator (12)
Engine Coolant Temperature Indicator (5) - with standard EMIC (without steering wheel switches) only. An icon and textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
High Beam Indicator (27)
Lamp Out Indicator (17) - with standard EMIC (without steering wheel switches) only. An icon and textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
Low Beam Indicator (21) Low Fuel Indicator (26)
Malfunction Indicator Lamp (MIL) (2) Park Brake Indicator (20) Seatbelt Indicator (19)
Tire Pressure Monitor (TPM) Indicator (9) - may also include textual messages in the multi-function display (28).
Traction Control (ASR) Indicator (10) - with standard EMIC (without steering wheel switches) only. An icon and textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
Traction Control (ASR) Malfunction Indicator (4) Turn Signal (Right and Left) Indicators (7)
Washer Fluid Indicator (11) - with standard EMIC (without steering wheel switches) only. An icon and textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
Wait-To-Start Indicator (3) - with diesel engine only.
Water-In-Fuel Indicator (13) - with standard EMIC (without steering wheel switches) only. An icon and textual message in the multi-function display (28) is used with the optional EMIC (with steering wheel switches).
