Rear A/C Receiver Drier - Description

DESCRIPTION

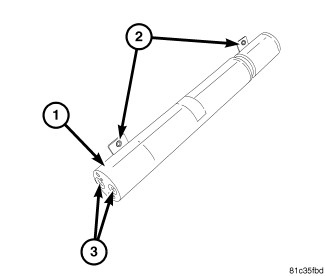

The rear A/C receiver/drier (1) for the optional rear A/C system is located on top of the vehicle behind the rear evaporator housing. The rear A/C receiver/drier stores unnecessary refrigerant, filters the refrigerant, helps remove moisture from the refrigerant and retains any refrigerant vapor that may leave the rear A/C condenser, until it becomes a liquid.

The rear A/C receiver/drier is installed on the high-side of the rear A/C system and consists of a metal housing with two ports (3) located at one end of the housing. The rear A/C receiver/drier contains desiccant and a filter and is mounted to the rear A/C condenser by use of two integral mounting brackets (2).
