Rear

DESCRIPTION

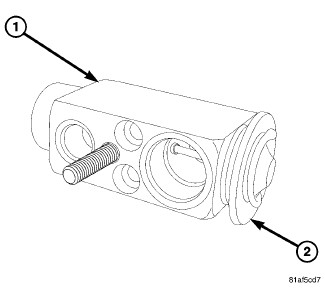

The rear A/C expansion valve is of a thermostatic expansion valve (TXV) design and controls the amount of refrigerant entering the rear A/C evaporator. The rear A/C expansion valve consists of an aluminum H-valve type body (1) with an integral thermal sensor (2) and is located on the rear evaporator housing between the rear refrigerant lines and the rear A/C evaporator.
