Rear

DESCRIPTION

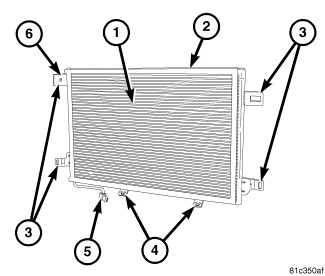

The A/C condenser (1) for the optional rear A/C system is located on top of the vehicle behind the rear evaporator housing. The rear A/C condenser is a heat exchanger made of rows of aluminum tubes with fins. The A/C condenser allows the high-pressure refrigerant gas that is being discharged by the A/C compressor, to give up its heat to the air passing as it flows over the tubes and fins, which causes the refrigerant to cool and change to a liquid state.

The rear A/C condenser is equipped with integral mounting tabs (3) and tapping blocks for the refrigerant lines (5 and (6) and mounting tabs the rear A/C receiver/drier (4). Foam strips (2) are used to seal the rear A/C condenser to the rear condenser fan unit.
