Symptom Related Diagnostic Procedures






HEATER BOOSTER

See Symptoms Diagnosis table for basic checks of the diesel fueled supplemental cabin heater.

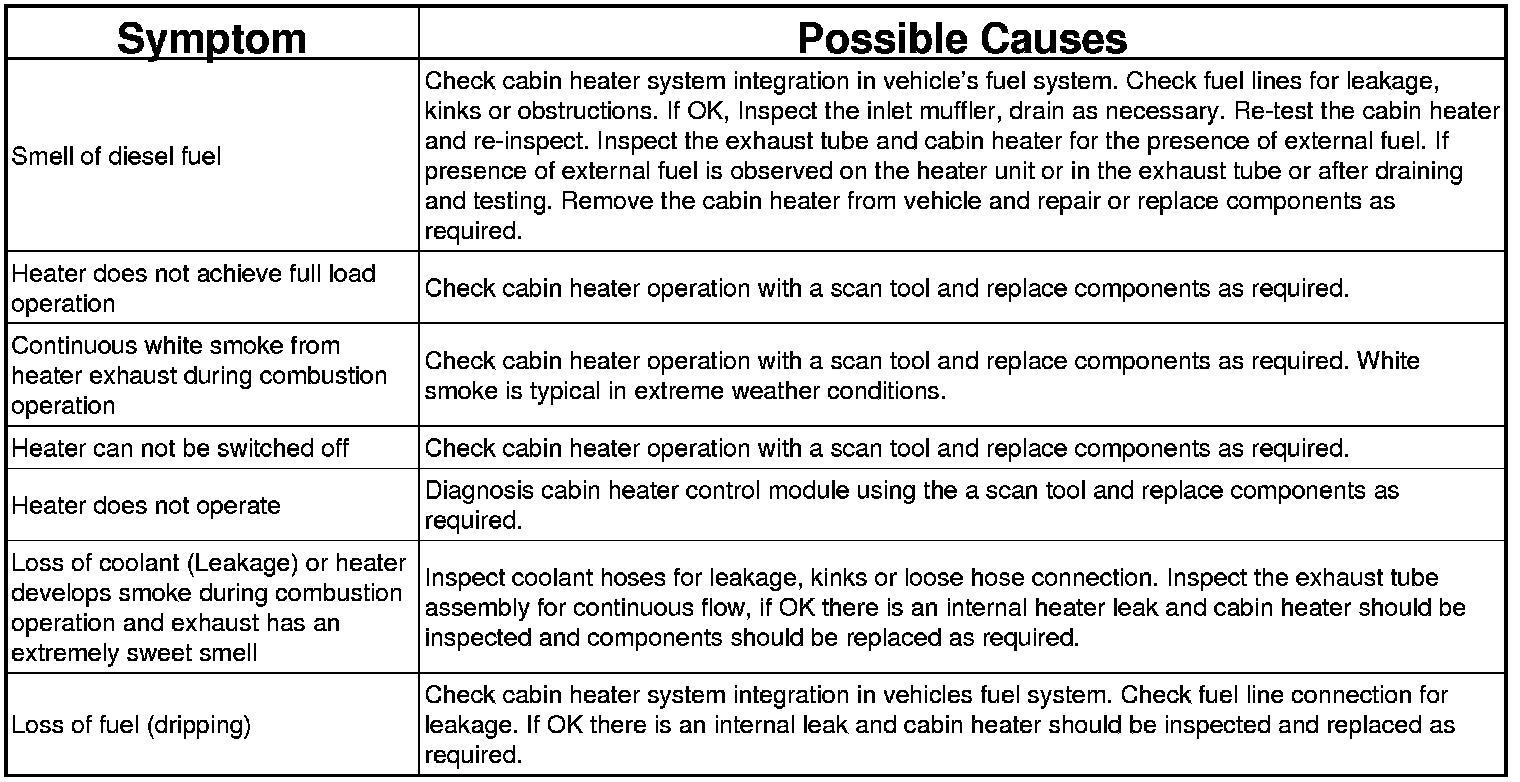

SYMPTOMS DIAGNOSIS
