Positive Temperature Coefficient (PTC) Cabin Heater - Installation

INSTALLATION

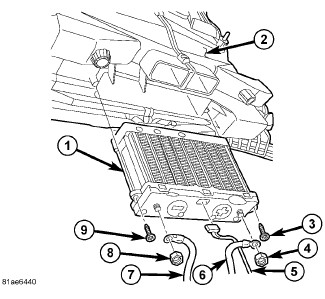

1. Install the positive temperature coefficient (PTC) heater unit (1) into the air distribution housing (2) and install the two screws (3 and 9). Tighten the screws to 2 Nm (17 in. lbs.).
2. Connect the control circuit connector (5), positive lead (6) and ground lead (7) to the PTC heater unit and install the nuts (4 and 8). Tighten the nuts securely.
3. Install the gear selector cover, .
4. Install the center footwell cover .
5. Install the center bezel .
6. Install the steering column opening cover .
7. Install the glove box .
8. Reconnect the negative battery cable.
