Cabin Heater Booster - Installation

INSTALLATION

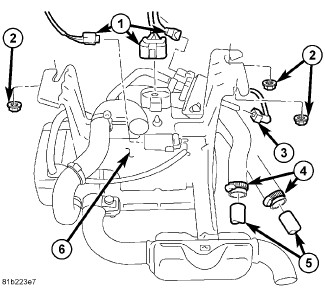

1. Position the heater booster unit (6) to the vehicle underbody and install the retaining nuts (2). Tighten the nuts to 6 Nm (53 in. lbs.).
2. Connect the fuel line (3) to the heater booster unit.
3. Install both heater hoses (5) onto the heater booster unit using a twisting motion. Tighten the hose clamps (4) securely.
4. Connect the three wire harness connectors (1) to the heater booster unit.
5. Lower the vehicle.
6. Reconnect the negative battery cable.
7. Refill the engine cooling system Service and Repair.
