Installation

3.0L DIESEL

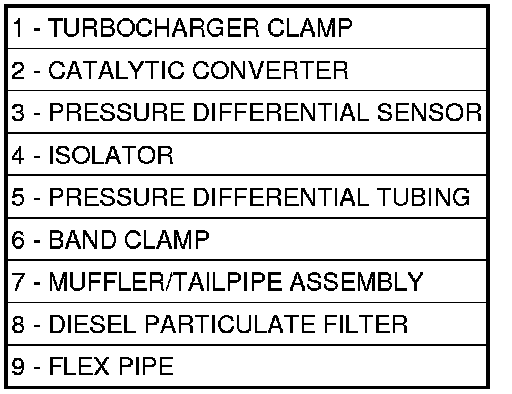

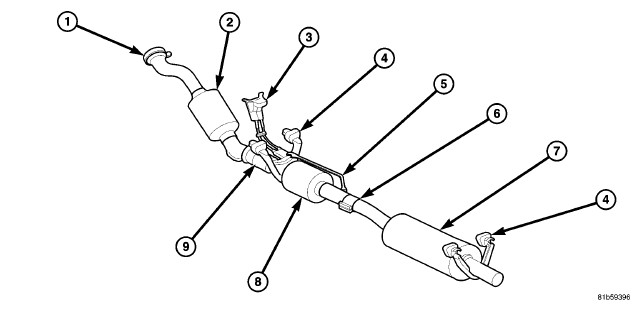

1. Position muffler into diesel particulate filter (8) and isolators (4).
2. Install muffler/tailpipe assembly (7) to diesel particulate filter clamp (6).
3. Align the exhaust system, and tighten muffler/tailpipe assembly (7) to diesel particulate filter clamp nut to 54 Nm (40 ft. lbs.).
4. Lower the vehicle.
5. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
