Installation

3.0L DIESEL ENGINE






NOTE: Clean all mating surfaces.

1. Properly position water pump with new gasket to the engine and tighten bolts to 14 Nm (10 ft. lbs.).
2. Install the EGR airflow valve assembly.Exhaust Gas Recirculation (EGR) Airflow Control Valve - Installation
3. Install the oil dipstick retaining bolt.
4. Install the lower charge air cooler hose.










5. Install the generator.

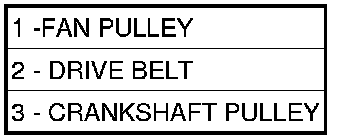

6. Install the serpentine belt (1).Serpentine Accessory Drive Belt - Installation










7. Install the fan drive belt (2).Serpentine Accessory Drive Belt - Installation
8. Install the fan and shroud.Installation
9. NOTE: The radiator fan assembly is attached (threaded) to the fan pulley (1). Install the fan blade/viscous fan drive assembly to the fan pulley by turning the mounting nut counter-clockwise as viewed from the front. Threads on the radiator cooling fan are REVERSE THREADED (LEFT-HAND THREAD).

10. Install the engine cover.
11. Install the air box assembly.Air Cleaner Body - Removal
12. Connect the AGM starter negative battery cable located inside the vehicle under the instrument paner near the accelerator pedal. .
13. Connect the negative battery cable.
14. Evacuate air and refill the cooling system. Procedures
15. Check cooling system for leaks.Testing and Inspection
