Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Variable Valve Timing >> Variable Valve Timing Solenoid >> Diagrams >> Camshaft Position Solenoid 2/1 (M272 ) 2 Way

Camshaft Position Solenoid 2/1 (M272 ) 2 Way

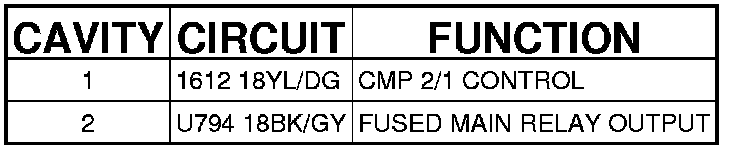

Connector - (M272 ) 2 WAY

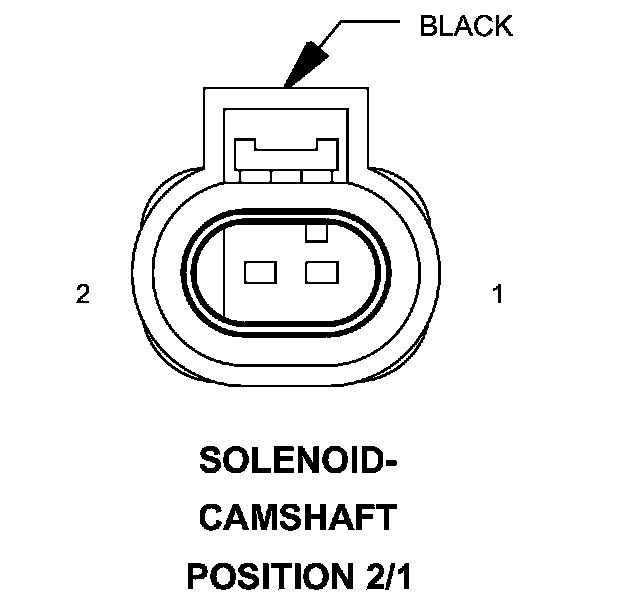

SOLENOID-CAMSHAFT POSITION 2/1 - (M272 ) 2 WAY
