Smoke Diagnosis Charts

SMOKE DIAGNOSIS CHARTS

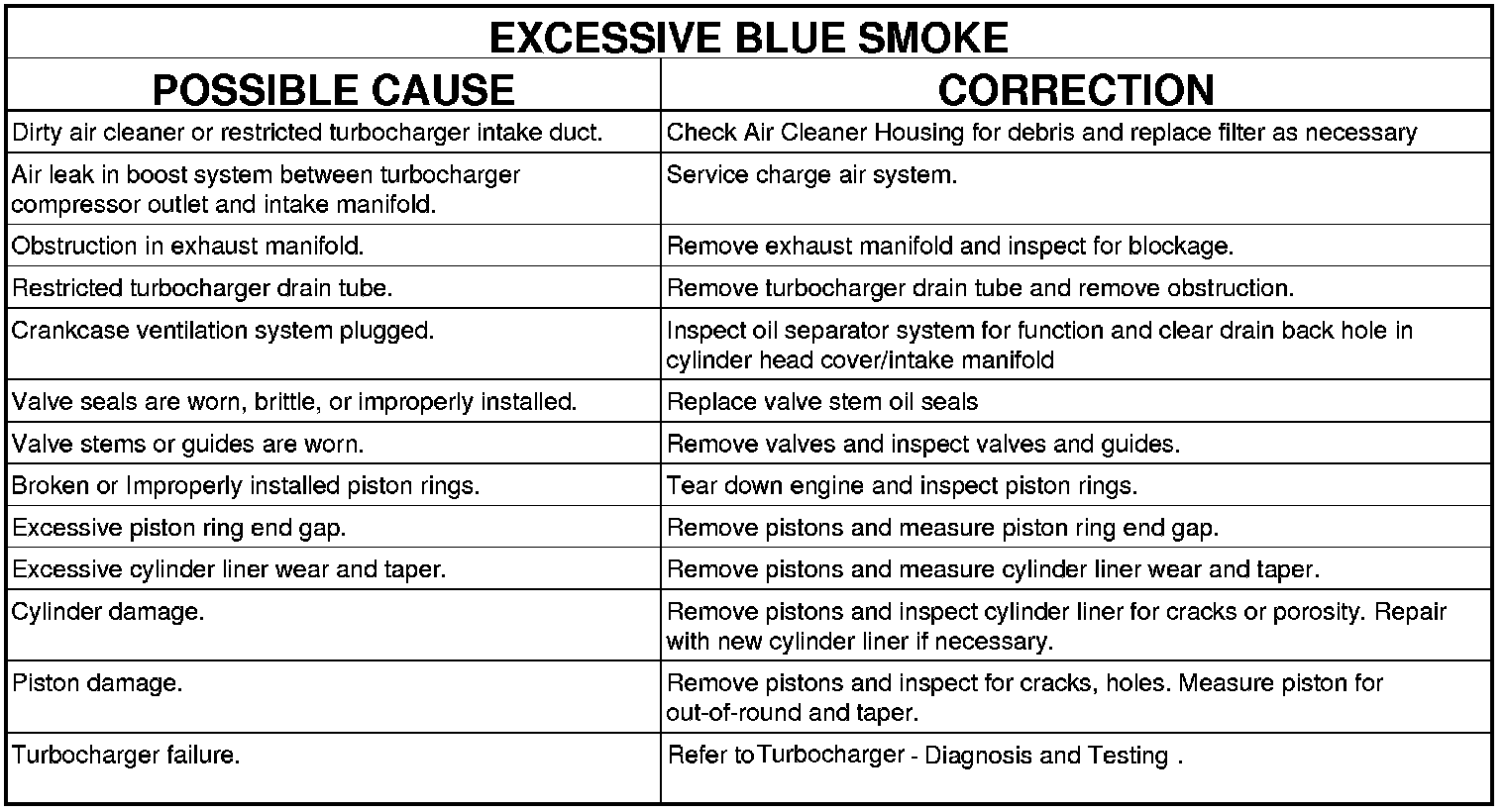

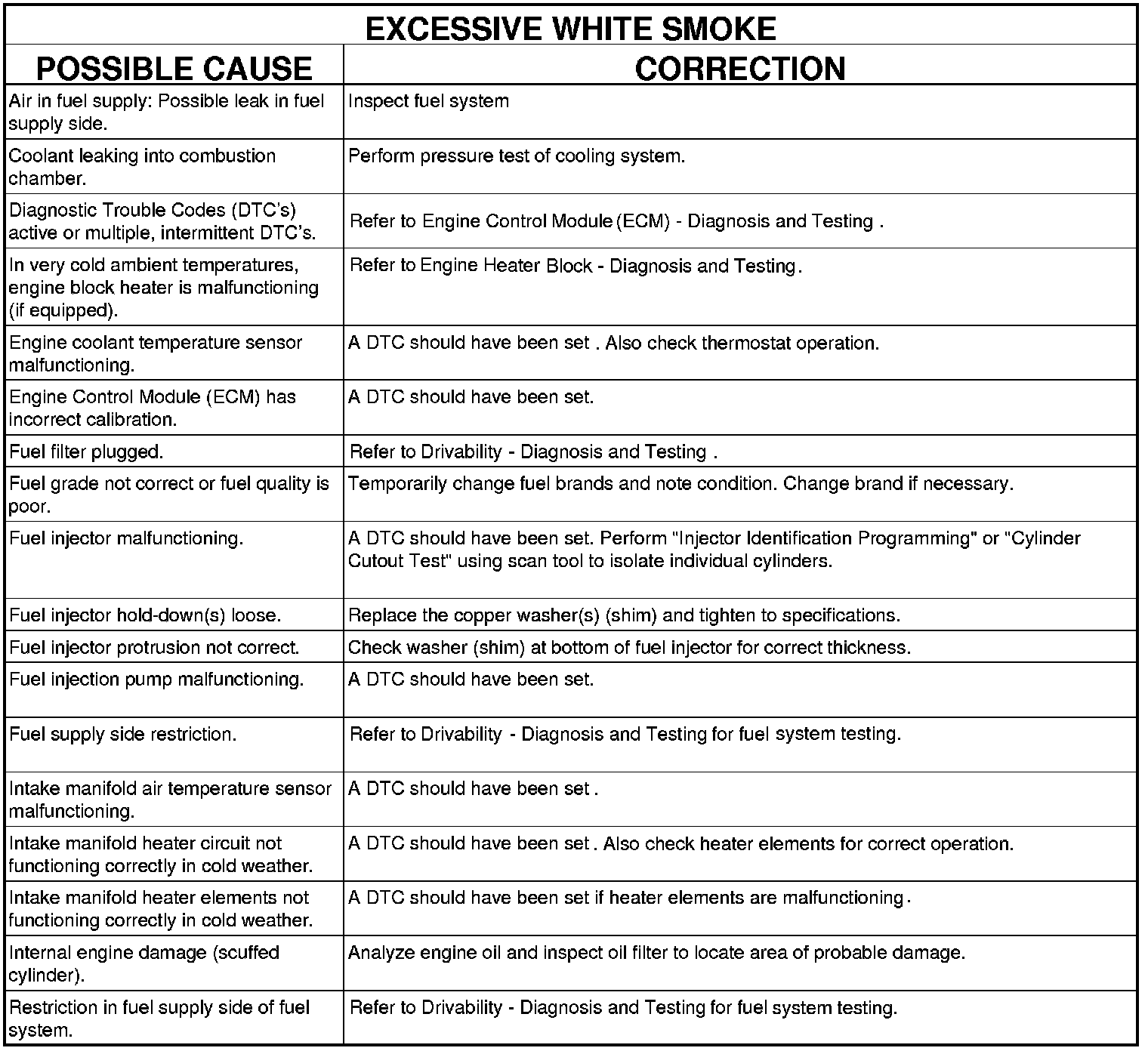

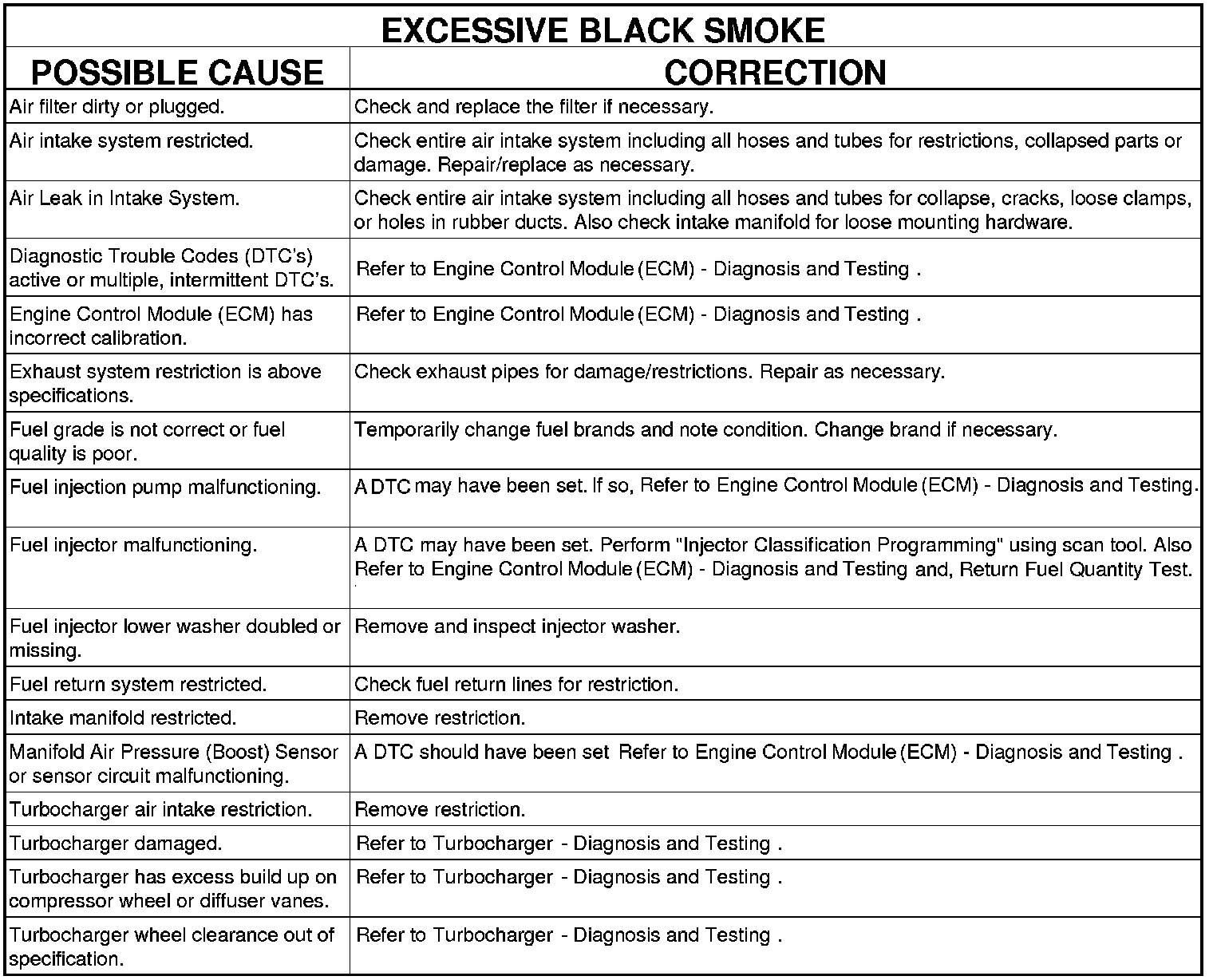

Small amounts of exhaust smoke (at certain times) are to be considered normal for a diesel powered engine. The following charts include possible causes and corrections for excess or abnormal exhaust smoke.
