Engine Oil Pan - Removal

REMOVAL





1. Disconnect negative battery cable.
2. Remove the oil level indicator tube.
3. Remove the skid plate.
4. Remove the lower bolt from the A/C compressor to oil pan.
5. Remove the transmission.
6. Remove the flex plate.

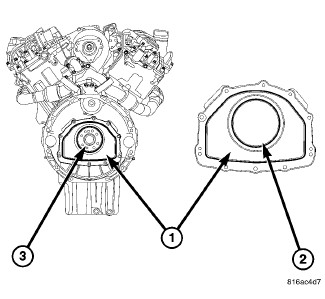

7. Remove the 5 bolts on the bottom of the rear main seal carrier (1).
8. Remove oil pan bolts.
9. Remove the oil pan.
