Accessory Drive Belt Tensioner - Removal






3.0L DIESEL










1. Remove fan drive belt Serpentine Accessory Drive Belt - Removal.

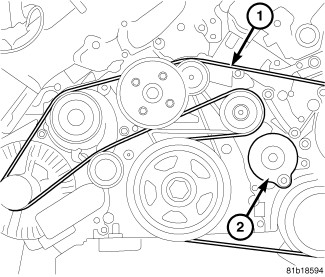

2. Remove accessory drive belt (1) Serpentine Accessory Drive Belt - Removal.
3. Remove accessory drive belt tensioner (2).
