Valve Rocker Arm - Removal

REMOVAL










1. Remove the appropriate camshafts .

NOTE: Rocker arms and lifters must be installed in the same location as when removed and stored in the up right position.

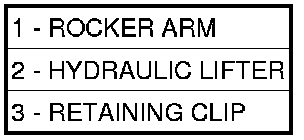

2. Remove the rocker arm (1) and lifter (2) assembly.
3. Remove the retainer clip (3) and separate the rocker arm from the lifter.
