Valve Rocker Arm - Installation

INSTALLATION

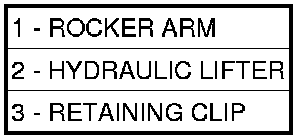

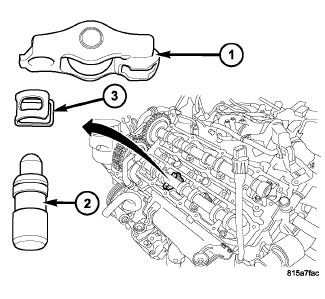

1. Using the retaining clip (3), attach the rocker arm (1) to the lifter (2).

NOTE: Rocker arms and lifters must be installed in the same location as when removed.

2. Install the rocker arm and lifter assembly in the same location as noted during removal.
3. Install the camshaft .
