Vibration Damper - Removal

REMOVAL

1. Disconnect negative battery cable.
2. Remove the air cleaner assembly Air Cleaner Body - Removal.
3. Drain the cooling system Service and Repair.
4. Remove the lower radiator hose.
5. Remove the serpentine belt Serpentine Accessory Drive Belt - Removal.




6. Remove the starter blank.
7. Install the Flywheel Locking Tool (1) 9102.





8. Remove the vibration damper bolt (1).










CAUTION: Care must be taken when removing the damper. DO NOT damage or gouge the front crankshaft seal

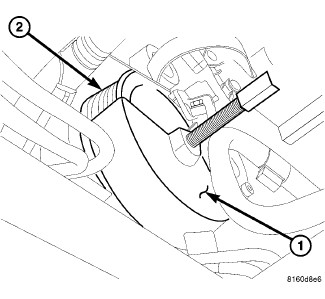

9. Using Vibration Damper Puller (1) 9544, remove the vibration damper (2).
