Vibration Damper - Installation

INSTALLATION

CAUTION: Care must be taken when installing the damper. DO NOT damage or gouge the front crankshaft seal

NOTE: To prevent potential oil leaks, DO NOT touch the front crankshaft inner seal.

1. Align the alignment key in the crankshaft with the key way in the damper and install the vibration damper.

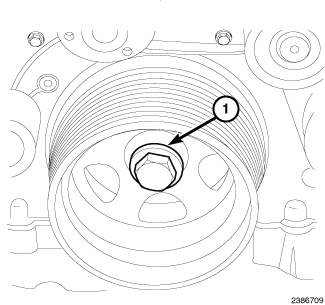

2. Install the vibration bolt (1). Tighten bolt to 210 Nm, plus 180 degrees (154 ft. lbs. plus 180 degrees).

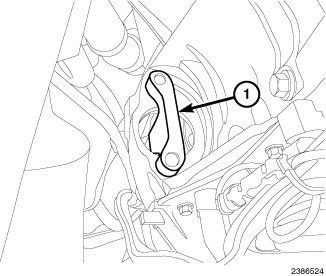

3. Remove Flywheel Locking Tool (1) 9102.
4. Install the starter blank.
5. Install the serpentine belt Serpentine Accessory Drive Belt - Installation.
6. Fill the cooling system Service and Repair
7. Install the lower radiator hose.
8. Install the cleaner assembly Air Cleaner Body - Installation
9. Connect negative battery cable.
