Engine Block Heater - Installation

3.0L DIESEL

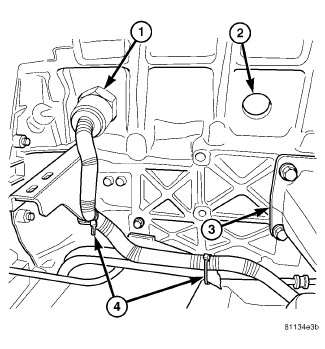

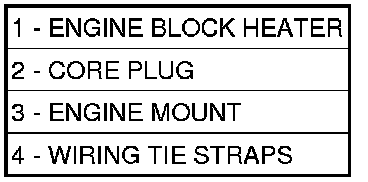

1. Screw the block heater (1) into the core hole.
2. Route the heater wiring harness away from and interference and secure with wiring tie straps (4).
3. Refill the cooling system Service and Repair.
4. Connect the negative battery cable.
5. Start the engine and inspect for leaks.Testing and Inspection
