Hydraulic Lifters - Installation

INSTALLATION










CAUTION: When the lifters are removed from the engine, they must be stored upright and in clean conditions. Install the rocker arms and lifters in the same location as when removed.

CAUTION: Replacement of the camshaft will also require replacement of the rocker arms and lifters.

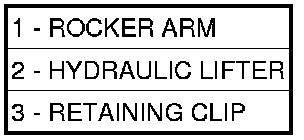

1. Assemble the lifter (2) to the rocker arm (1) with the retaining clip (3).

NOTE: Rocker arms and lifters must be installed in the same location as when removed.

2. Install the rocker arm and lifter assembly in the same location as noted during removal.
3. Install the camshaft(s) .
